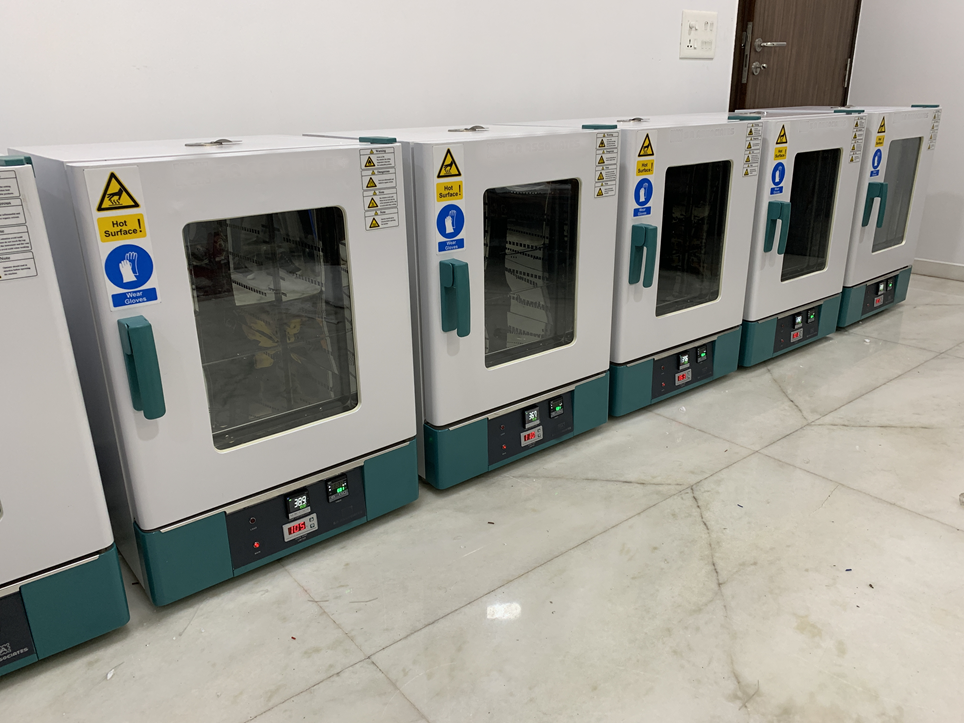

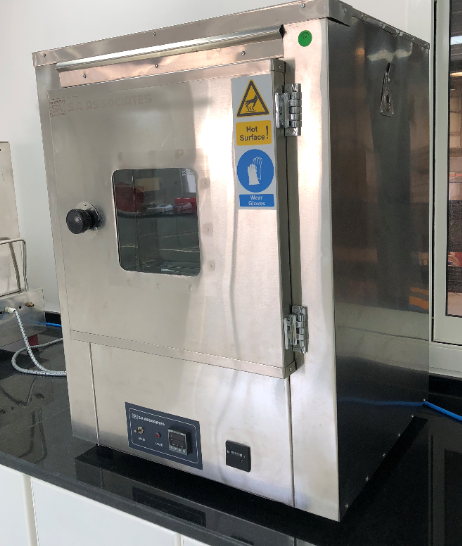

Hot Air Oven (With or without Air change)
<p class="stock in-stock"></p>
Our Ovens are sturdy, with double walled construction. Inner chamber made of
ALUMINIUM or STAINLESS-STEEL sheet. Outer chamber is made of stainless steel
or galvanized steel or mild steel sheet and are duly powder coated.
The gap between the walls is filled up with special grade glass wool for proper
insulation to avoid heat losses. Inner chamber has ribs for placing the shelves at
convenient levels. Supplied with 2 or 3 removable shelves. The oven door is mounted
on heavy hinges with a handle. Door is duly insulated .
Temp control uses Thermostat ,On/Off Control ,PID Control ,Microprocessor control
*Please specify the kind of controller and accuracy required at the time of ordering.
Hot Air Oven is a device that is used to destroy microorganisms and bacterial spores by using high temperatures for several hours. It is also used for various industrial processes.
Types of Hot Air Oven:
Forced air hot air oven: It works heating the oven and using a fan to move the hot air around. It is more effective.
Static air hot air oven: It works by using a heating coil at the bottom of the oven. It takes a longer time to reach the desired temp.
Model No.: D1019
Features:
- Our Ovens are sturdy, with double walled construction. Inner chamber made of
ALUMINIUM or STAINLESS-STEEL sheet. - Outer chamber is made of stainless steel
or galvanized steel or mild steel sheet and are duly powder coated. - The gap between the walls is filled up with special grade glass wool for proper
insulation to avoid heat losses. - Inner chamber has ribs for placing the shelves at
convenient levels. - Motorized blower for maintaining uniform temp.
- Supplied with 2 or 3 removable shelves.
- The oven door is mounted on heavy hinges with a handle.
- Door is duly insulated .
- Temp control uses Thermostat,
- On/Off Control ,PID Control ,Microprocessor control
- Temperature range: 50 to 300 degree celcius
- Customizable Chamber Volume (Litre): 60 Litre, 65 Litre, 75 Litre, 100 Litre, 150 Litre
- Uses voltage 220 VAC
CONSTRUCTION INSIDE STAINLESS STEEL, OUTSIDE DULY POWDER COATED: Double Walled
TEMPERATURE RANGE AMBIENT TO 2000C
ACCURACY +/- 1 Deg. C
TEMPERATURE CONTROLLER PID CONTROLLER, PT-100 SENSOR
FUJI, MADE IN JAPAN

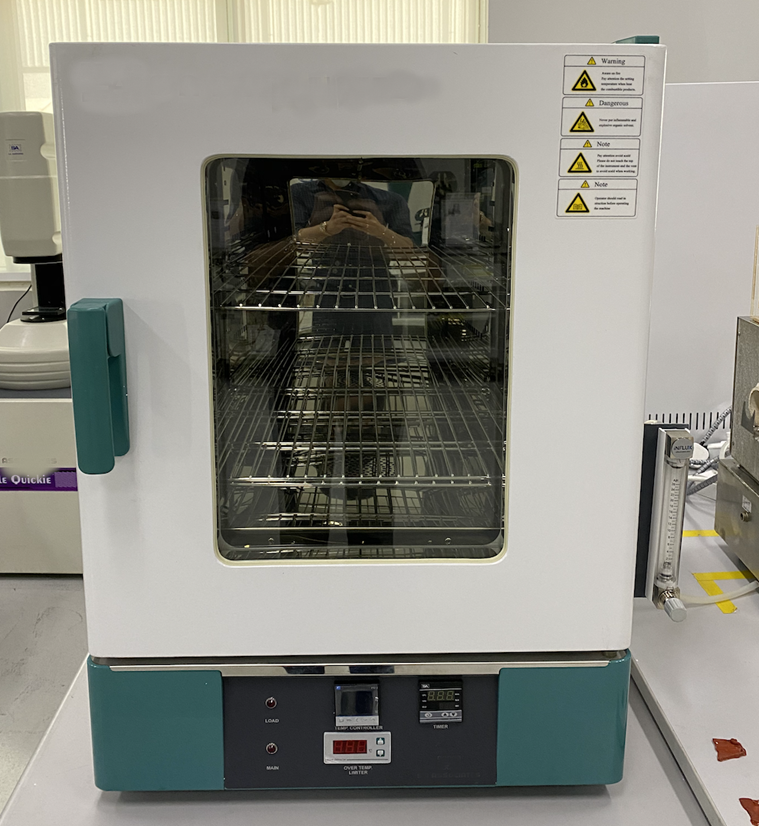

AIR CHANGES 8-20 Air changes per hour
AIR CHANGE MEASUREMENT Through flow meter, MAKE: Influx (made in UK) direct air change measurement verifiable through volume calculation
Air Required: 16-40 L/min
Air Source: To be arranged by end user
DIMENSIONS: 20 x 20 x 18 Inches (Length X Depth X Height)
NUMBER OF TRAYS 3
*Please specify the kind of controller and accuracy required at the time of ordering.
